Wind Turbine Design and Analysis

Simpack Wind serves as a versatile tool for conducting dynamic analyses and load prediction on any type of wind turbine, with any level of fidelity. Addressing all multibody system (MBS) requirements within the wind industry, Simpack Wind accommodates both low-fidelity models, for accurate predictions of loads on major components, and high-fidelity models tailored for vibro-acoustic optimization. The specialized modules within Simpack Wind use the esteemed technology from Simpack, worldwide renowned in multiple industries.

Simpack Rotorblade Generator > Dassault Systèmes

Simpack Rotorblade Generator

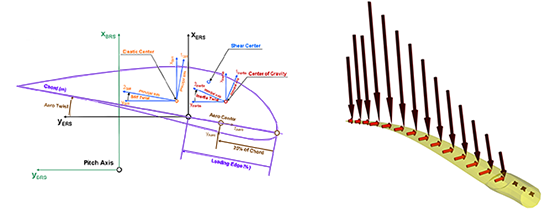

The Simpack Rotorblade Generator allows users to model flexible blades with diverse levels of fidelity, using standard industry input data. This tool enables precise simulations of blades undergoing substantial deformations, incorporating effects such as bend-twist coupling and centrifugal stiffening. Moreover, users can seamlessly integrate cross-sectional matrix input data derived from intricate blade designs in CATIA Composites, enhancing the versatility and accuracy of the simulation process.



Simpack Interface to AeroDyn

The Simpack Interface to AeroDyn establishes a crucial linkage between Simpack, a dynamic simulation software, and AeroDyn, an advanced aerodynamics software library developed by the National Renewable Energy Laboratory (NREL). This integration facilitates the seamless coupling of aerodynamic forces with Simpack for simulating horizontal-axis turbines.

Simpack Interface to Aerodyn > Dassault Systèmes
Simpack Interface to HydroDyn > Dassault Systèmes

Simpack Interface to HydroDyn

The Simpack Interface to HydroDyn, a hydrodynamics software library developed by the National Renewable Energy Laboratory (NREL), is employed to apply hydrodynamic forces on both fixed and floating offshore structures. This interface plays a vital role in dynamic analyses and load prediction of offshore wind turbines.

Simpack Interface to AeroModule

Used to interface the aerodynamic forces from AeroModule (TNO) with Simpack for simulating horizontal and vertical axis wind turbines. AeroModule software is purchased directly from TNO.

AeroModule by TNO with Simpack > Dassault Systèmes

Simpack Wind Turbine Control Interface

Wind Turbine Control Interface integrates GH Bladed standard Wind Turbine control DLLs into Simpack. These DLLs control pitch angles and generator torques. This module requires Simpack Control.
