Understanding 3D FEM: The Three-Dimensional Finite Element Method

The integration of 3D FEM and FEA has revolutionized design by streamlining the development process, improving product reliability and accelerating time to market through the use of advanced simulations. These technologies enable accurate modeling of complex systems, reduce reliance on physical prototypes and drive innovation across all industries. This article looks at the transformative impact of 3D FEM and FEA on product development and describes their evolution, their applications and the future direction of analysis and design in mechanical engineering.

The Evolution of FEM and FEA: Bridging the Gap between Design and Reality

Developed in the 1950s, the finite element method (FEM) has revolutionized the way complex engineering and physical problems are solved. By breaking down a large system into smaller, more manageable units, FEM uses mathematical equations to find solutions for various simulations, such as structural integrity and fluid dynamics. This method paved the way for finite element analysis (FEA) in the 1970s, driven by advances in computer-aided design (CAD) software. FEA, the practical extension of FEM, uses computational tools to predict how a product will withstand real-world forces, such as vibration and temperature changes, to effectively simulate performance and improve design through digital modeling.

Essentially, FEM provides the theoretical basis and numerical strategies for decomposing structures into finite elements, while FEA uses this basis to investigate specific behaviors within a model, such as load response and thermal effects. Both methods and analysis are indispensable in computer-aided engineering and physics, and underscore the critical role of simulation and analysis in modern product development and optimization across multiple industries.

How FEM Works

The FEM breaks down a complex system, or domain, into smaller, simpler parts called finite elements that form a mesh over the domain. It uses variational methods to approximate the solution by minimizing an error function and is particularly flexible with complex geometries and boundary conditions. FEM is well suited for the analysis of structural, thermal, and fluid dynamic problems where accuracy is critical with irregular shapes and varying material properties.

FEM models

These are comprehensive representations of the physical systems being analyzed that take into account geometry, material properties, boundary conditions, and external forces or loads.

Discretization

This is the process of breaking down a large, complex problem into smaller, more manageable parts called elements. This allows complex problems to be solved mathematically.

Interpolation

This uses shape functions to estimate the behavior of each element based on the known behavior at the nodes (the points that define the element). It's important to determine how the elements deform or behave under different conditions.



Assembling

In this step, the behavior of each element is assembled into a cohesive model that represents the entire system or object under study. It's like putting together a jigsaw puzzle, where each piece's behavior contributes to the overall picture.

FEM and FDM: A Comparative Overview

The finite element method and the finite difference method (FDM) are both numerical methods for solving differential equations that model physical phenomena, but they differ significantly in their approach and application.

In the finite difference method, the domain is divided into a grid and the differential equations are approximated by difference equations at each grid point. It is simple and easy to implement, especially for problems with simple, regular geometries. FDM is often used for fast approximations in heat transfer, fluid flow, and other problems where the domain can be easily discretized or decomposed into a regular grid. The finite element method divides the domain into smaller, flexible shapes allowing for a more detailed and accurate modeling of complex shapes and varying material properties, unlike FDM's uniform grid approach.

The Interaction between FEM and FEA: The Linchpin of Mechanical Design

FEM and FEA have transformed the product development process by replacing physical prototypes with digital simulations and enabling detailed exploration of how products react to physical stresses and environments.

From 2D to 3D FEM

The 3D finite element method is a key tool in mechanical engineering and physics for solving complex problems with exceptional modeling, analytical accuracy and predictive capability. It allows the detailed analysis of structures, phenomena and materials in three dimensions and offers both significant advantages and certain disadvantages. The versatility and precision of 3D FEM is unmatched. However, to realize its full potential, the computational requirements, time and level of expertise, data quality and financial investment must be carefully examined. When deciding to use 3D FEM, it is essential to weigh these factors against the goals and limitations of the project or research task at hand. The versatility of 3D FEM makes it indispensable in many fields, as it can be adapted to different problems by integrating different physical laws and boundary conditions. Its applications include:

  • Engineering design and analysis: Used in fields such as mechanical, aerospace, and automotive engineering to analyze stress, deformation, and more.
  • Biomedical: Supports the design and understanding of biomedical devices and the behavior of human tissue.
  • Geotechnical: Helps simulate soil behavior and structural interactions.
  • Energy: Used in nuclear engineering and renewable energy design.
  • Electronics: Essential for thermal management and electromagnetic analysis in the design of electronic components.
  • Materials Science: Enables analysis of material behavior under various conditions.

CATIA Mechanical Designer: Driving Innovation with 3D FEM and FEA

Dassault Systèmes' CATIA Mechanical Designer is a leading 3D CAD software suite for design, engineering, modeling and simulation in industries such as automotive, aerospace and industrial machinery. The integration of 3D FEM and FEA provides a robust solution to the complex challenges of product development and ensures compliance with stringent industry standards.

In particular, CATIA addresses the shortcomings of traditional 3D FEM and FEA with innovative solutions that increase efficiency, reduce costs and simplify the complexity of model creation and simulation analysis.

Enhanced Efficiency and Accessibility

Integrated into the 3DEXPERIENCE platform, CATIA increases processing efficiency through optimized algorithms and cloud computing, reduces hardware dependency and enables complex simulations. The user-friendly interface, coupled with comprehensive support and learning tools, makes advanced modeling and analysis accessible to beginners and experts alike. The software simplifies model preparation with advanced meshing tools and supports rapid design changes, minimizing errors and improving accuracy.

Cost-Effective Design Optimization

The software's modular structure enables customized solutions that optimize costs, improve product quality, and remove the need for physical prototypes. CATIA's simulation capabilities extend to mechanical stress, vibration, heat transfer and fluid mechanics, and are supported by FEM Surface and FEM Solid tools for accurate meshing of complex geometries.

Specialized 3D FEM tools

FEM Surface (FMS) specializes in meshing surface-based structures that are critical for automotive and aerospace components, while FEM Solid (FMD) is essential for analyzing solid geometries such as engine blocks to ensure they can withstand operating forces.

Advanced 3D Modeling and Simulation

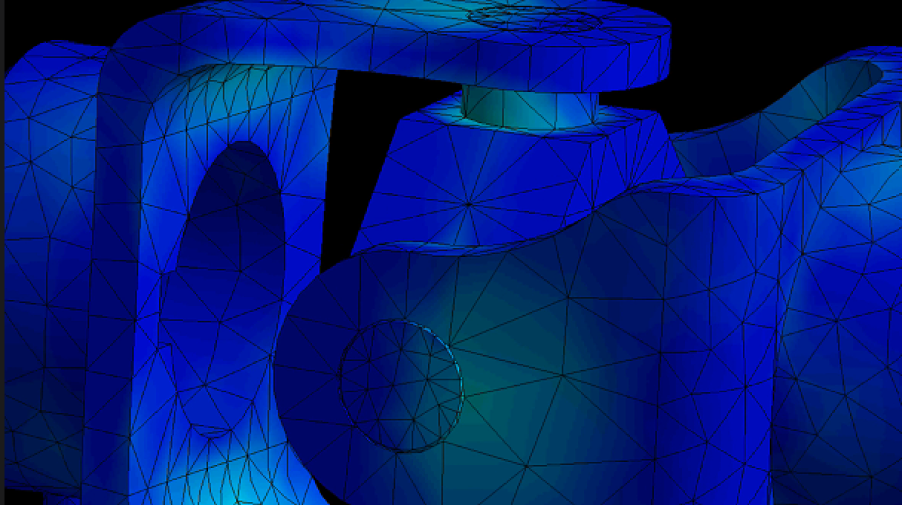

CATIA’s advanced meshing methods are essential for 3D FEA. These include geometry simplification and dynamic mesh associativity, which ensure that meshes accurately reflect design changes and enable iterative optimization. The platform's sophisticated meshing methods, including tetrahedral meshing and local mesh constraints, provide high-quality meshes for detailed analysis, which is critical in industries where safety and reliability are paramount.

Setting new standards in engineering simulation and analysis, 3DExperience CATIA provides unparalleled tools for mesh generation, model analysis, and quality control. Its comprehensive approach ensures accurate and efficient simulations and supports innovation and compliance in high-tech industries by directly addressing and overcoming the limitations typically associated with 3D FEA.

Conclusion: Pushing the Boundaries of PLM with 3D FEM and FEA

The integration of 3D FEM and FEA in mechanical engineering increases efficiency, innovation, and reliability in design and analysis, and pushes the boundaries of product development and lifecycle management. This synergy fosters a cycle of continuous improvement that enables engineers to iteratively refine designs based on simulation results, reducing reliance on physical prototypes and accelerating development. 3D FEM and FEA's ability to predict potential problems and optimize material usage also improves sustainability and cost efficiency.

This process promotes a culture of innovation and ensures that products meet current standards while being adaptable to future developments. The integration of these tools into CATIA Mechanical Designer represents a significant leap in design and manufacturing capabilities, facilitating the creation of accurate, efficient and reliable designs while opening the doors to new paradigms in product development. With the ongoing integration of artificial intelligence and machine learning, 3D FEM and FEA tools will continue to revolutionize product development and maintain CATIA's central role in addressing today's manufacturing challenges while driving industry standards for innovation, safety and performance.
