CATFiber FEM Export CAA V6 Apps
Transfer of manufacturing layup tape courses (fiber directions, gaps) for FE analysis and simulation.
A solution by: CORIOLIS
Application domain: Manufacturing
Solution Overview
Transfer of manufacturing layup tape courses (fiber directions, gaps) for FE analysis and simulation.
Benefits

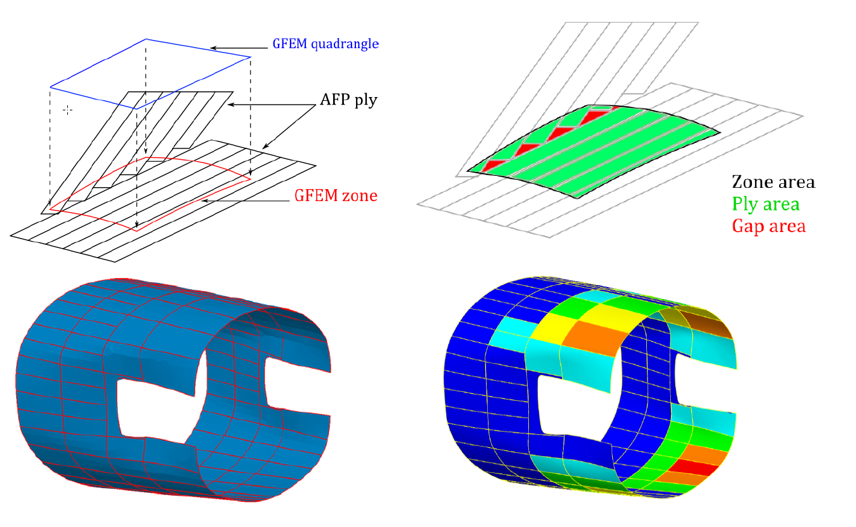

Data mapping of fiber placement data (tape courses) with input structural mesh.
Export and creation of composites shell properties with accurate fiber angles.
Coverage analysis (fiberless resin areas on stress panels).
Support of various FE solver formats (CATIA, SIMULIA Abaqus, NASTRAN, SAMCEF).
Advanced features for complex structures (assembly of metal / HLU / AFP parts, factorization of shell properties).
Analysis images (thickness, fiber angles, coverage areas).
